When planning a concrete slab—whether it is a backyard patio, a residential driveway, a shed pad, or a garage floor—the focus often goes directly to the concrete itself. However, the long-term structural integrity of any flatwork depends heavily on what lies beneath it. A properly prepared sub-base, typically constructed of compacted crushed stone or aggregate, provides uniform load support, prevents moisture pooling beneath the slab, and mitigates heaving caused by freeze-thaw cycles. Getting the sub-base right requires accurate arithmetic: you must calculate excavation depths, account for compaction loss, and translate cubic measurements into manageable units like tons. By utilizing tools such as a Volume Calculator or a specialized Concrete Volume Calculator, builders can bridge the gap between sub-base excavation and final pour dimensions without running short of materials or digging too deep.
This comprehensive guide explores the geometry, physics, and practical mathematics behind sub-base gravel calculations. You will learn how to determine exact excavation depths, apply compaction factors correctly, convert volume to weight safely, and avoid common layout mistakes that lead to cracked flatwork.
The Core Mathematics of Sub-Base Gravel Estimation
Calculating the correct amount of gravel for a concrete slab sub-base requires converting linear dimensions (length and width) and a thickness measurement into a three-dimensional volume, then factoring in how crushed stone compresses under mechanical compaction. Builders often skip the compaction adjustment, leading to an unexpected shortage of aggregate once the vibrating plate compactor runs over the loose stone.
Basic Volume Formula
The fundamental formula for determining the loose volume of aggregate required for a rectangular area is:
Volume (cubic feet) = Length (feet) x Width (feet) x Depth (feet)To convert cubic feet into cubic yards—the standard unit of measure for bulk aggregate delivery—divide the total cubic feet by 27:
Volume (cubic yards) = [Length (feet) x Width (feet) x Depth (feet)] / 27If your measurements are in inches, convert them to feet first by dividing each dimension by 12. For example, a 4-inch depth becomes 0.333 feet (4 / 12).
The Compaction Factor
Crushed stone is not solid rock; it consists of angular stone fragments mixed with smaller rock dust (often referred to as Crusher Run, Dense Graded Aggregate, or Item 4). When dumped from a truck, this material is loose and contains significant air pockets. Mechanical compaction forces the stones to interlock, reducing the overall volume. Typically, standard aggregate exhibits a compaction factor of approximately 1.15 to 1.25, depending on the gradation and compaction method.
This means you must order 15% to 25% more loose gravel than your final compacted dimensions suggest. Using a reliable Storage Volume Calculator or general volume tool can help keep these multiplier steps organized before ordering.
Volume to Weight Conversion (Cubic Yards to Tons)
Aggregate suppliers sell gravel by weight (tons), not by volume. To convert cubic yards of crushed stone into tons, you must apply a density factor. Most standard crushed limestone, granite, or trap rock has a bulk density of approximately 1.3 to 1.5 tons per loose cubic yard (or roughly 2,400 to 2,700 pounds per cubic yard).
Total Weight (tons) = Loose Volume (cubic yards) x Density Factor (tons/cubic yard)For safety and budget planning, assuming 1.4 tons per loose cubic yard is standard practice for typical crushed stone sub-base materials.
Step-by-Step Calculation Process
To ensure your project runs smoothly without excess waste or multiple delivery charges, follow this structured calculation workflow.
Step 1: Measure Length and Width
Measure the exact perimeter of the proposed concrete slab using a tape measure. For irregularly shaped pads, break the footprint down into distinct rectangular sections. Always measure to the outside edges of your intended formwork.
Step 2: Determine Required Sub-Base Thickness
Sub-base thickness varies based on soil conditions and expected load:
- Standard Walkways and Patios: Typically require 3 to 4 inches of compacted gravel over stable soil.
- Residential Driveways and Shed Pads: Generally require 4 to 6 inches of compacted gravel.
- Heavy Vehicle Areas: May require 6 to 8 inches or more, often laid in multiple lifts (layers).
Step 3: Calculate Loose Cubic Yardage with Compaction Allowance
Multiply length by width by your desired compacted depth (in feet), divide by 27, and multiply by your compaction multiplier (typically 1.20 for a 20% expansion buffer).
Step 4: Convert to Tons
Multiply your final loose cubic yard figure by 1.4 to determine how many tons of crushed stone to order from the quarry.
Worked Examples
Let us walk through two practical scenarios to demonstrate how these formulas apply in real-world construction projects.
Example 1: A Backyard Shed Concrete Pad
Suppose you are pouring a concrete slab for a backyard storage shed. The dimensions of the slab are 12 feet wide by 16 feet long. Local building recommendations suggest a 4-inch compacted gravel sub-base.
- Length: 16 feet
- Width: 12 feet
- Compacted Depth: 4 inches (0.333 feet)
1. Calculate Compacted Volume:
16 ft x 12 ft x 0.333 ft = 63.936 cubic feet2. Convert to Cubic Yards:
63.936 / 27 = 2.368 compacted cubic yards3. Apply Compaction Factor (20% increase for loose volume):
2.368 x 1.20 = 2.842 loose cubic yards4. Convert to Tons:
2.842 cubic yards x 1.4 tons/cubic yard = 3.978 tonsYou would round this up slightly and order approximately 4 tons of crushed stone to account for minor sub-grade irregularities and spreading loss.
Example 2: A Single-Car Residential Driveway Parking Pad
Consider a larger project: a rectangular parking pad measuring 10 feet wide by 35 feet long, requiring a robust 6-inch compacted sub-base to handle vehicular weight.
- Length: 35 feet
- Width: 10 feet
- Compacted Depth: 6 inches (0.50 feet)
1. Calculate Compacted Volume:
35 ft x 10 ft x 0.50 ft = 175 cubic feet2. Convert to Cubic Yards:
175 / 27 = 6.481 compacted cubic yards3. Apply Compaction Factor (25% increase for thicker lifts):
6.481 x 1.25 = 8.101 loose cubic yards4. Convert to Tons:
8.101 cubic yards x 1.45 tons/cubic yard (dense crushed blend) = 11.74 tonsFor this project, you would coordinate delivery for roughly 12 tons of aggregate base course, ensuring you have enough material to achieve uniform density across the entire 350-square-foot footprint.
Excavation Depth Math: Tying Sub-Grade to Final Finish Height
One of the most frequent errors DIY builders make is miscalculating the total excavation depth. Your excavation depth must accommodate both the gravel sub-base thickness and the concrete slab thickness, all while matching the surrounding landscape grade or door thresholds.
The formula for total excavation depth is:
Total Excavation Depth = Concrete Thickness + Compacted Sub-Base ThicknessFor example, if you are pouring a standard 4-inch concrete slab over a 4-inch compacted gravel sub-base, your total excavation depth below your string line (finished grade reference) must be:
4 inches (concrete) + 4 inches (gravel) = 8 inches total excavation depthFailing to dig deep enough means your finished concrete pad will sit higher than intended, creating tripping hazards, drainage issues against building foundations, or doors that fail to swing open over thresholds. For broader volume checks during multi-stage site work, a Volume Converter is also handy if you need to switch between cubic feet, cubic yards, and metric units.
Engineering Principles and Sub-Grade Stabilization
Understanding the interaction between the natural sub-grade soil and the crushed stone sub-base is critical for preventing long-term structural failures. The sub-grade is the native soil exposed after excavation. If the sub-grade is composed of expansive clay, fine silt, or organic topsoil, it will lack the load-bearing capacity required to support a heavy concrete slab. When subjected to moisture and weight, poor sub-grades deform, causing the overlying gravel sub-base to migrate or settle.
To counteract weak sub-grades, contractors often install a non-woven geotextile fabric directly over the excavated earth before spreading any crushed stone. This fabric acts as a separation layer, preventing the aggregate from sinking into the mud while allowing water to pass through safely. Furthermore, proof-rolling the sub-grade with a heavy plate compactor or roller helps identify soft spots. Any rutting or spongy areas must be excavated deeper and backfilled with stable compacted fill before placing the aggregate base course.

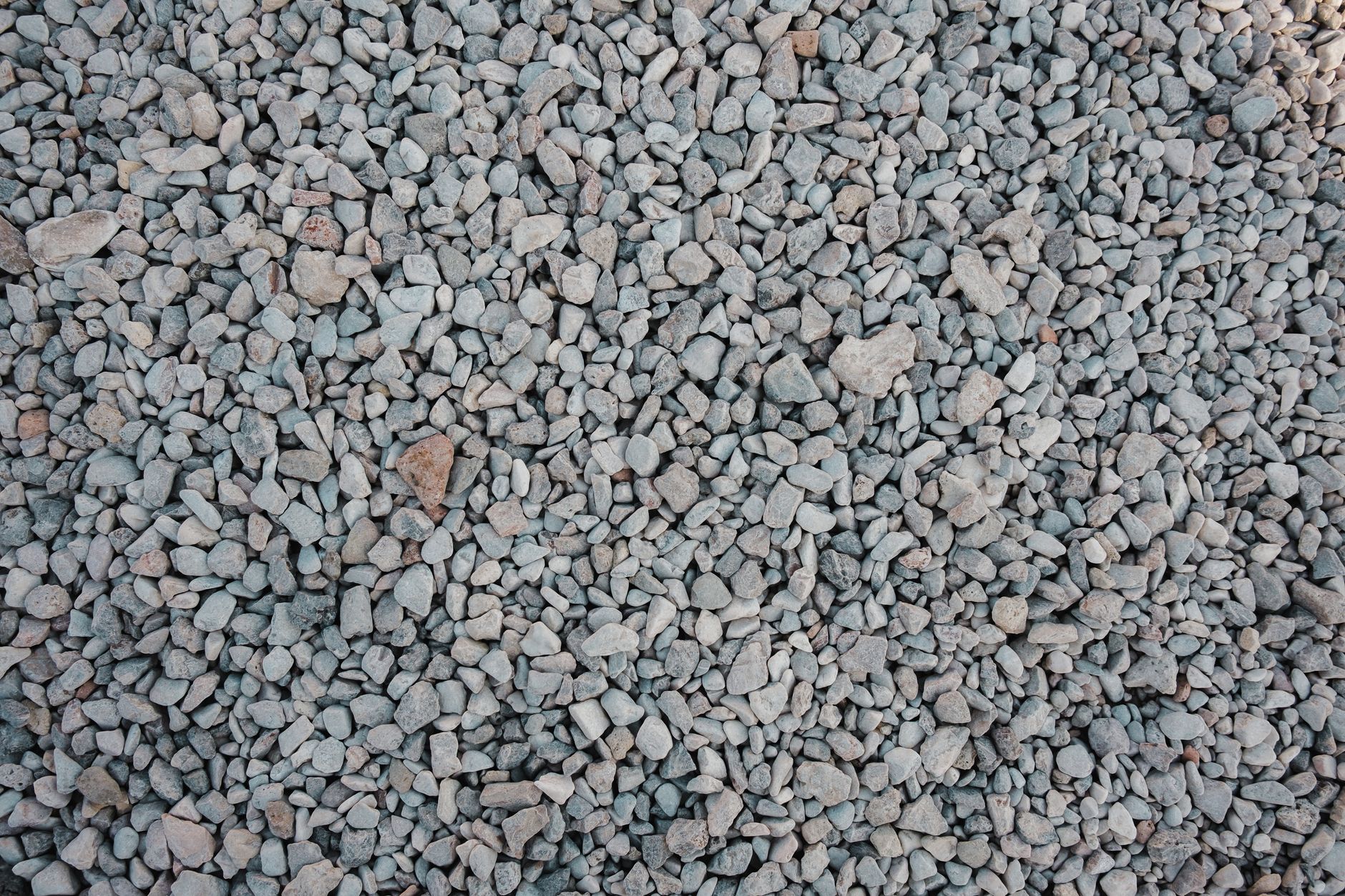

Aggregate Gradation and Interlocking Mechanics
Not all gravel performs equally beneath flatwork. The engineering term "gradation" refers to the distribution of particle sizes within an aggregate mixture. A well-graded sub-base aggregate contains a balanced mix of coarse crushed rocks (ranging up to 3/4 inch or 1 inch), medium chips, sand-sized particles, and fine stone dust.
When mechanical compaction is applied via a vibratory plate compactor or heavy roller, the larger angular stones lock together to form a rigid skeletal framework. Simultaneously, the intermediate chips and fine rock dust fill the voids between the larger stones. This dense packing eliminates internal air pockets, restricting water movement and preventing the stone matrix from shifting under dynamic loads. Using unselected rounded gravel or uniform pea gravel lacks this interlocking mechanism, leading to chronic sub-base consolidation and subsequent concrete cracking.
Lifting, Spreading, and Compaction Best Practices
Even with accurate math and high-quality crushed stone, poor installation techniques will compromise the sub-base. Correct placement requires attention to lift thickness and moisture content.
Managing Lift Thickness
Most standard compaction equipment (such as a 200-lb plate compactor) can only effectively densify aggregate to a maximum depth of 4 inches per pass, known as a "lift." If your project requires an 8-inch gravel sub-base, attempting to dump and compact all 8 inches at once will result in a densely packed crust over loose, uncompacted stone near the bottom. Always calculate and place gravel in separate 4-inch lifts, compacting each layer thoroughly before adding the next.
Moisture Conditioning
Crushed stone aggregate requires optimal moisture to achieve maximum density. Dry aggregate resists compaction because friction between dry rock dust particles prevents them from sliding into tight void spaces. Conversely, saturated aggregate becomes soupy, creating hydraulic pressure that prevents particles from locking together. The ideal moisture level resembles damp sand—it should hold together when squeezed in your hand without dripping excess water.
Detailed Cost and Material Planning Considerations
Accurate material calculations directly impact your project budget. Ordering too little gravel results in expensive short-load delivery fees or project delays, while over-ordering leaves you with unwanted piles of stone to dispose of. When working with local quarries, keep the following logistical factors in mind:
- Bulk Density Variances: Wet stone weighs significantly more than dry stone. If your supplier’s yard has been exposed to heavy rain, a cubic yard of gravel may weigh closer to 1.5 to 1.6 tons rather than the standard 1.4 dry estimate.
- Bulking and Waste Factors: Always add a 5% to 10% contingency for site waste, spillages during spreading, and filling minor depressions in the sub-grade excavation floor.
- Delivery Minimums: Dump truck drivers typically charge flat delivery fees or enforce minimum tonnage requirements (often 3 to 5 tons). For smaller shed pads requiring only 2 tons of stone, buying bagged aggregate from a home improvement center might be more cost-effective despite the higher per-pound price.
Common Mistakes in Sub-Base Gravel Calculations
Avoiding mathematical and logistical missteps saves time, labor, and money during flatwork installation.
- Forgetting the Compaction Factor: Ordering only the exact net volume of the hole means your compacted sub-base will end up thinner than specified, reducing load-bearing capacity. Always order loose volume.
- Ignoring Sub-Grade Irregularities: If your excavated dirt floor has dips, bumps, or trenches from grading equipment, those low spots will consume extra gravel. Adding a 5% to 10% contingency buffer to your final tonnage prevents running short.
- Confusing Loose Density Across Aggregate Types: Lightweight aggregates, rounded river rock, and dense crushed quarry run weigh different amounts per cubic yard. Always verify the specific weight characteristics of your local supplier's material.
- Failing to Account for Lift Limits: Mechanical compactors can only effectively pack a certain depth of stone at one time (usually 4 inches maximum per lift). If you need an 8-inch gravel base, you must calculate, place, and compact it in two separate 4-inch lifts.
Frequently Asked Questions
To help you refine your project planning, here are answers to common questions regarding sub-base calculations and flatwork preparation.
How many tons of gravel do I need for a 4-inch concrete slab base?
As a general rule of thumb, every 100 square feet of area at a 4-inch compacted depth requires about 1.2 to 1.3 tons of crushed stone, assuming a 20% loose compaction buffer. Always calculate your exact perimeter dimensions rather than relying strictly on rough averages.
Why should I use crushed stone instead of round river rock for a sub-base?
Crushed stone features angular edges that lock together tightly when compacted, creating a stable, rigid foundation. Rounded river rock acts like marbles under pressure, shifting and sliding beneath a heavy concrete slab, which can lead to settling and cracking.
What is the difference between loose volume and compacted volume?
Loose volume refers to aggregate as it sits uncompressed in a truck bed or pile, full of air space. Compacted volume refers to the stone after mechanical tamping or vibrating, where the particles settle together into a smaller, denser footprint.
How do I calculate gravel for an irregular or circular concrete slab?
Break irregular shapes into smaller geometric rectangles or triangles, calculate the volume for each section individually, and sum them together. For circular slabs, use the formula for a cylinder: Area = Pi x radius squared, then multiply by your depth.
Should I install a vapor barrier over the gravel sub-base?
In most modern indoor or conditioned slab installations (such as garages or living spaces), a polyethylene vapor retarder is placed directly over the compacted gravel sub-base prior to pouring concrete to prevent ground moisture migration. Always verify local building codes and specific project requirements.
What size crushed stone is best for a concrete sub-base?
Quarry-processed stone commonly known as Crusher Run, Dense Graded Aggregate (DGA), or road base—typically graded from 3/4 inch down to stone dust—is widely preferred because the smaller dust and fines fill the voids between larger stones to achieve maximum compaction.
